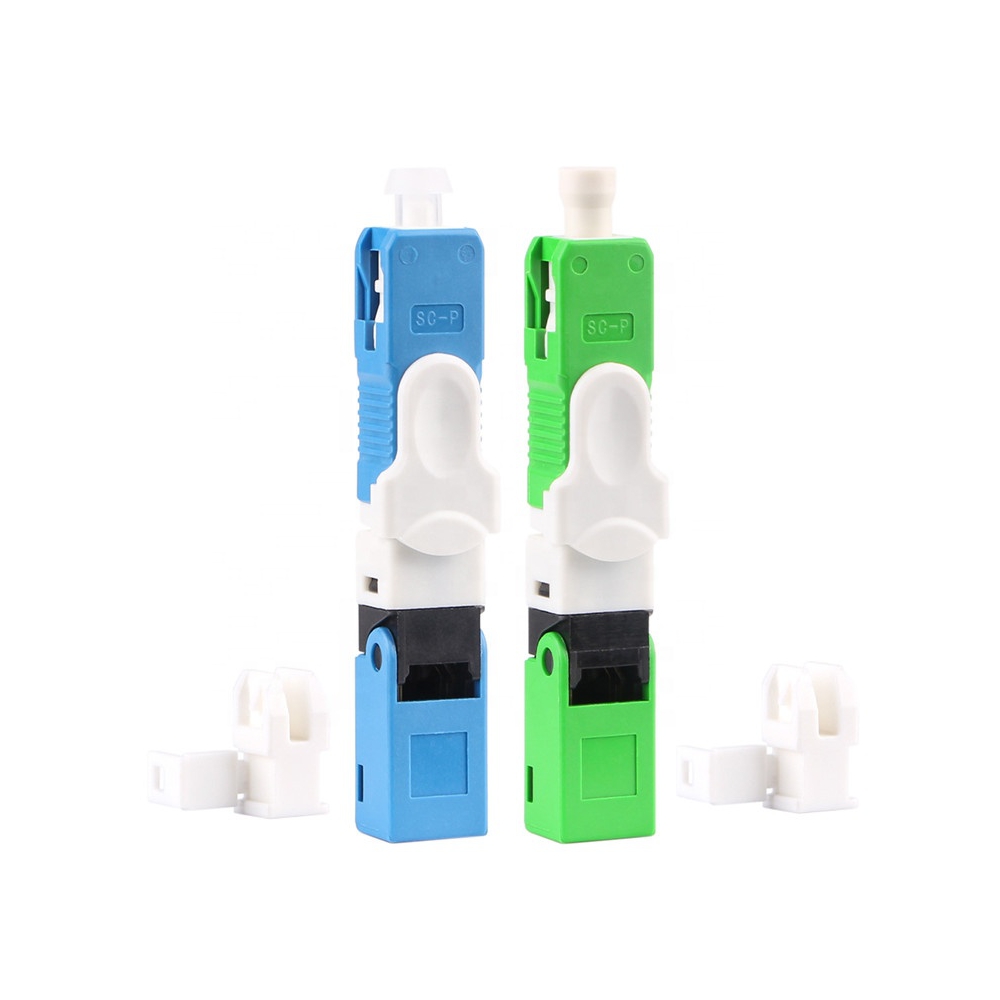

Features
Linkage structure design, and equipment, connector connection, reserved micro-bend to remain unchanged;
Double V groove structure design, high stability and reliability of fiber connection;
Core structure: adopt the normally closed flexible locking structure, excellent optical performance;
Applied to 2.0mm × 3.0mm & 2.0mm × 1.6mm drop cable;
Easy to operate, fast to assemble, high success rate, long time of using, easy maintenance.
Specifications
Item |
Unit |
UPC |
APC |
Insertion Loss |
dB |
≤0.25 |
≤0.3 |
Return Loss |
dB |
≥50 |
≥55 |
Tensile strength |
N/2min |
>30 |
|
Work temperature |
℃ |
-40~+85 |
|
Repeatability |
dB |
≤0.2 |
|
Repeated assembly |
times |
≥10 |
|
Mate-demate |
times |
≥500 |
|
Cable type |
mm |
2.0×3.0 & 2.0×1.6 drop cable |
|
Product dimension |
mm |
52×9×8.1 |
