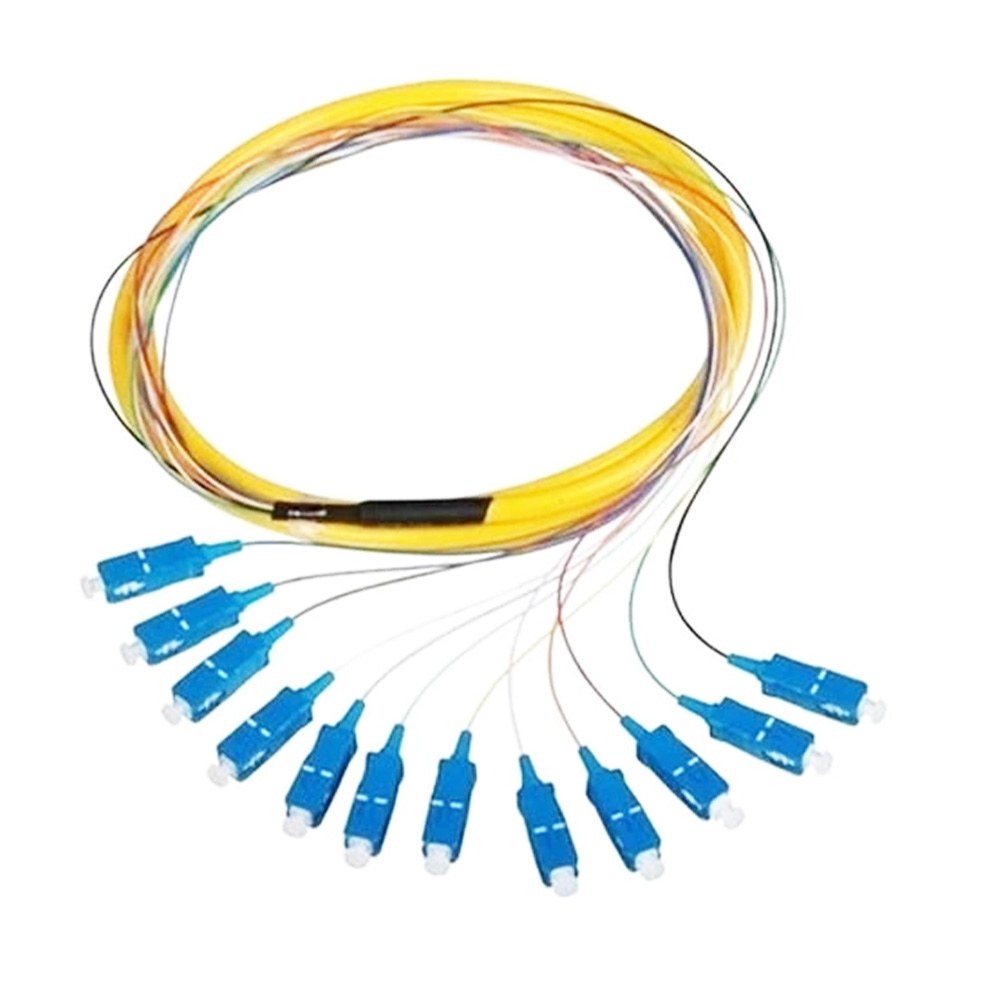

Interconnection between two fiber optic port, e.g. switch to switch, modules to modules, and other fiber optic communication equipment in FTTx, CATV, Telecommunications etc. Suitable for 10Gigabit Application at most.
Standards
IEC 11801 2nd Ed, TIA-568-C.3, IEC61754, IEC60794, ITU G.652.D/G.651.1/G.657.A compliant
Specifications
| SM APC | SM UPC | OM3/OM4 UPC | MM PC | |
| Insertion Loss | <=0.2dB | <=0.3dB | <=0.3dB | <=0.3dB |
| (0.15 typ.) | (0.15 typ.) | (0.25 typ.) | (0.25 typ.) | |
| Return Loss | >=55dB | >=50dB | >=45dB | >=45dB |
| Max. Change in I.L. with repeat insertion | <=0.1dB | |||
| Insertion Life Cycle | 500 Times | |||
| Please Note: For more precision connector please submit a request to [email protected] | ||||
Optical Fiber Parameters
| G652.D | G657.A | OM1 | OM2 | OM3 | OM4 | ||
| attenuation(+20 C) | @850nm | - | - | <=3dB/km | <=3dB/km | <=3dB/km | <=3dB/km |
| @1300nm | - | <=1dB/km | <=1dB/km | <=1dB/km | <=1dB/km | ||
| @1310nm | <=0.36dB/km | <=0.36dB/km | |||||
| @1550nm | <=0.22dB/km | <=0.22dB/km | |||||
| Bandwidth (Class B) | @850nm | - | - | >=200 Mhz-km | >=500 Mhz-km | >=1500 Mhz-km | >=3500 Mhz-km |
| @1300nm | - | - | >=500 Mhz-km | >=500 Mhz-km | >=500 Mhz-km | >=500 Mhz-km | |
| Effective modal bandwidth | @850nm | >=2000 | >=4700 | ||||
| Cable Cut-off Wavelength, | <=1260nm | <=1260nm |
Product Part No.
| Category | Connctor A | Connector B | Fiber Type | Cable Type | Jacket Material | Length Mtr |
|
Fiber Optic
Pach cord
5
|
SC UPC 1 | SC UPC 1 | G.652D 1 | 0.9mm 1 | PVC 1 | |
| SC APC 2 | SC APC 2 | G.657A2 2 | 1.6mm 2 | LSZH 2 | ||
| LC UPC 3 | LC UPC 3 | OM1 3 | 2.0mm 3 | OFNR 3 | ||
| LC APC 4 | LC APC 4 | OM2 4 | Duplex 2.0 4 | … | ||
| FC UPC 5 | FC UPC 5 | OM3 5 | … | |||
| FC APC 6 | FC APC 6 | |||||
| DLC UPC 7 | DLC UPC 7 | |||||
| DLC APC 8 | DLC APC 8 | |||||
| … | … |
Please Note: Not All the kinds and types are included, such armored, multi-core types etc. Details such as length of boots, A-B rings, color of boots are not specified in this specs, to customize that please contact our sales dept.
