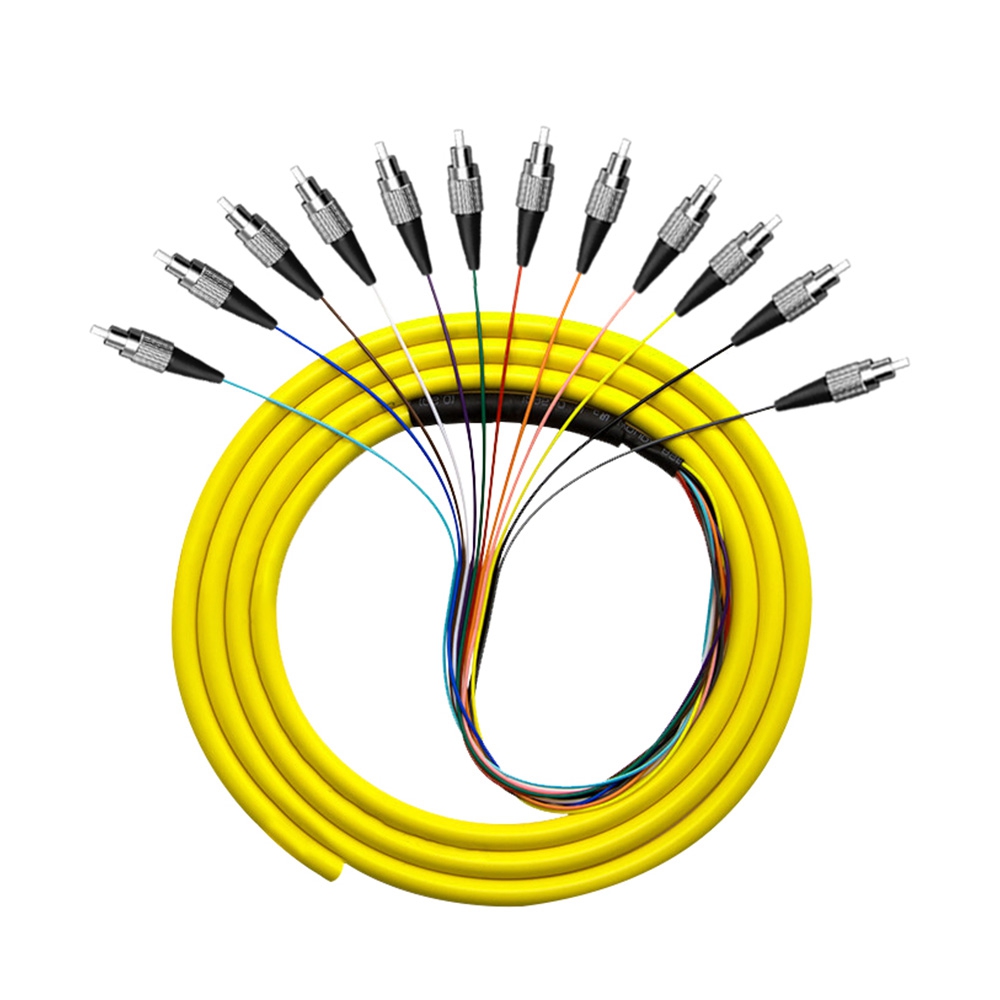

Fiber Optic Patch Cord

Applications
Interconnection between two fiber optic port, e.g. switch to switch, modules to modules, and other fiber optic communication equipment in FTTx, CATV, Telecommunications etc. Suitable for 10Gigabit Application at most.

 Standards
IEC 11801 2nd Ed, TIA-568-C.3, IEC61754, IEC60794, ITU G.652.D/G.651.1/G.657.A compliant

 Specifications

	SM APC	SM UPC	OM3/OM4 UPC	MM PC
Insertion Loss	<=0.2dB	<=0.3dB	<=0.3dB	<=0.3dB
	(0.15 typ.)	(0.15 typ.)	(0.25 typ.)	(0.25 typ.)
Return Loss	>=55dB	>=50dB	>=45dB	>=45dB
Max. Change in I.L. with repeat insertion	<=0.1dB
Insertion Life Cycle	500 Times
Please Note: For more precision connector please submit a request to [email protected]

 Optical Fiber Parameters

		G652.D	G657.A	OM1	OM2	OM3	OM4
attenuation(+20 C)	@850nm	-	-	<=3dB/km	<=3dB/km	<=3dB/km	<=3dB/km
	@1300nm	-		<=1dB/km	<=1dB/km	<=1dB/km	<=1dB/km
	@1310nm	<=0.36dB/km	<=0.36dB/km
	@1550nm	<=0.22dB/km	<=0.22dB/km
Bandwidth (Class B)	@850nm	-	-	>=200 Mhz-km	>=500 Mhz-km	>=1500 Mhz-km	>=3500 Mhz-km
	@1300nm	-	-	>=500 Mhz-km	>=500 Mhz-km	>=500 Mhz-km	>=500 Mhz-km
Effective modal bandwidth	@850nm					>=2000	>=4700
Cable Cut-off Wavelength,		<=1260nm	<=1260nm

 Product Part No.

Category	Connctor A	Connector B	Fiber Type	Cable Type	Jacket Material	Length Mtr
Fiber Optic  Pach cord 5	SC UPC 1	SC UPC 1	G.652D 1	0.9mm 1	PVC 1
	SC APC 2	SC APC 2	G.657A2 2	1.6mm 2	LSZH 2
	LC UPC 3	LC UPC 3	OM1 3	2.0mm 3	OFNR 3
	LC APC 4	LC APC 4	OM2 4	Duplex 2.0 4	…
	FC UPC 5	FC UPC 5	OM3 5	…
	FC APC 6	FC APC 6
	DLC UPC 7	DLC UPC 7
	DLC APC 8	DLC APC 8
	…	…

Please Note: Not All the kinds and types are included, such armored, multi-core types etc. Details such as length of boots, A-B rings, color of boots are not specified in this specs, to customize that please contact our sales dept.
